Axial Flow Fan Accessories

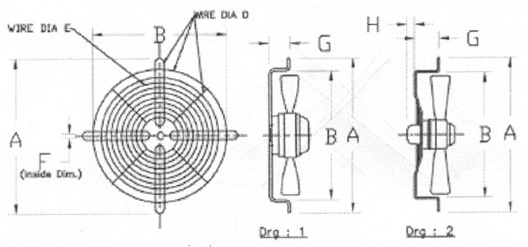

  Flat Grills

Blade Dia A B C D E F
150 175 150 45 2.5 1.5 5.0
200 260 205 40 3.0 3.0 6.5
250 305 260 40 3.5 2.0 6.5
300 360 290 40 4.0 2.5 7.0
350 440 370 75 4.0 2.5 7.5


  Basket Grills

Blade Dia A B C D E F G H Drg.
200 280 230 40 4 2.5 7.0 45 - 1
250 345 290 40 4 2.0 8.5 45 - 1
300 395 330 40 4 2.5 7.5 80 30 2
350 450 380 75 5 2.5 8.5 80 30 2

  Double Flange Housing

Blade Dia A B C D Material Rhick. Drag.
150 170 155 65 155 1 1
200 220 205 86 240 1 1
250 280 253 100 290 1 1
300 360 310 100 335 1 2

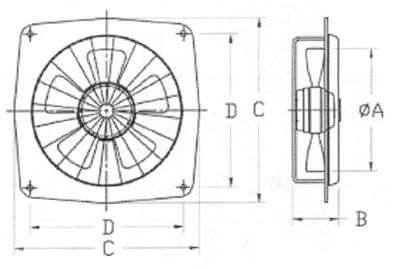

  Exhaust Fan Frames

Blade Dia ØA B C D
200 200 88 290 235
300 300 110 390 320
350 350 135 470 380
