Centrifugal Blowers Double Inlet

These Blowers normally use forward curved impellers made of galvanized steel, which are press fitted on the Rotor of External Rotor Motor, making the unit compact. Double Inlet signifies that the Air is drawn in from two sides of the Blower and exited from one outlet. The Rotor with impeller is dynamically Balanced in two planes, for vibration free running during its entire life. The assembly of Motor and Impeller is essentially mounted in a technically designed Housing for optimum performance. The External Rotor Motor is cooled with the air stream flowing over it.

Blowers Range From : Impeller Diam. : 125 to 180 mm Air Flow : 200 to 2000 m3/hr. Input Voltage : 110, 220, 440 V AC (50/60 Hz.) Power Input : 60 to 350 W

NOTE : Motors with CE Mark and confirm to EN 60335-1 standards

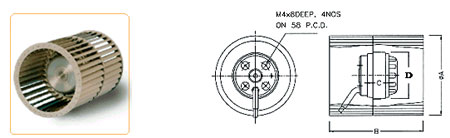

Dimensions :

Model	A	B	C	D
DI*/125X120*	125	120	25/35	92
DI*/125X180*	125	180	35	92
DI*/146X180*	146	180	45	92
DI*/160X150*	160	150	35	92
DI*/180X200*	180	200	45	110

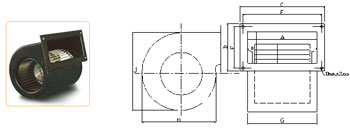

Model	Imp. Dim.	A	B	C	D	E	F	G	H	J
DI*/125X120*/H	125 X 120	146	67	183	105	168	88	146	175	170
DI*/125X180*/H	125 X 180	215	68	254	110	238	92	215	178	180
DI*/146X180*/H	146 X 180	232	102	270	140	254	126	232	206	220
DI*/160X150*/H	160 X 150	176	105	216	145	196	125	176	226	240
DI*/180X180*/H	180 X 200	260	135	310	185	*	*	260	280	300

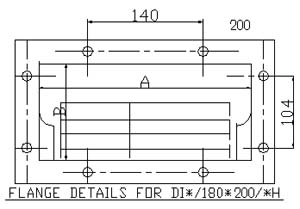

* = Refer Above Diagram.

Technical Specifications : Centrifugal Blowers Double Inlet 1400 RPM MODEL Rotor Diam.mm. Impeller Diam. mm. Voltage V Amps A Watts W Speed RPM Air Volume m3/hr DI 23/125X120/14 92 125 230 0.20 50 1050 275 DI 23/125X180/14 92 125 230 0.30 65 1100 500 DI 23/146X180/14 92 146 230 0.45 100 1000 825 DI 23/160X150/14 92 160 230 0.52 120 1200 780 DI 23/180X200/14 110 180 230 0.65 150 1100 1600

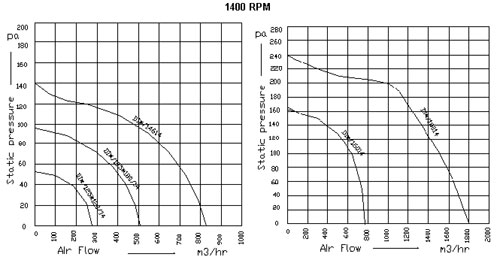

Air Flow Curves For Double Inlet Centrifugal Blower Conversion 100pa = 0.4 H2O 100m3/Hr = 60cfm

Centrifugal Blowers Single Inlet 2800 RPM MODEL Rotor Diam. mm. Impeller Diam. mm. Voltage V Amps A Watts W Speed RPM Air Volume m3/hr DI 23/125X120/28 92 125 230 0.35 80 1680 410 DI 23/125X180/28 92 125 230 0.50 135 1750 750 DI 44/125X180/28 92 125 415 0.35 135 2100 800 DI 23/146X180/28 92 146 230 1.30 300 1800 925

Air Flow Curves For Double Inlet Centrifugal Blower Conversion 100pa = 0.4 H2O 100m3/Hr = 60cfm

Typical Applications : Fan Coil Units in HVAC applications Applications with relatively high static pressure at the outlet and low noise Lift Cabin applications
