Centrifugal Fans Backward Curve

These Fans use Backward Curved Impellers made of Steel or Engineering Plastics. The impellers are press fitted on the External Rotor Motor and dynamically Balanced in two planes. Backward Curved Fans can be used with or without scroll Housing, and find its application in sucking operations, and where static required at Fan Inlet is high.

Backward Curved fans Range From :

Impeller Diam.
:
190 to 225 mm
Air Flow
:
500 to 1000 m3/hr
Input Voltage
:
110, 220, 440 V AC (50 & 60 Hz.)
Power Input
:
60 to 300W

NOTE : Motors with CE Mark and confirm to EN 60335-1 standards.


Dimensions :

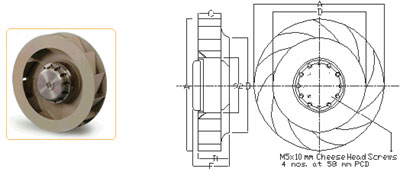

Backward Curved fans
Model
A
B
C
D
E
BC */190*
190
62
43
132
68/78
BC */220*
200
67
48
159
78/88

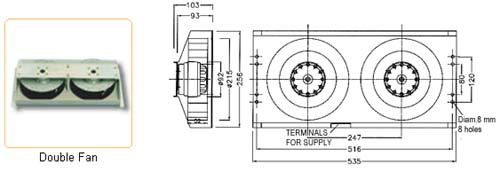

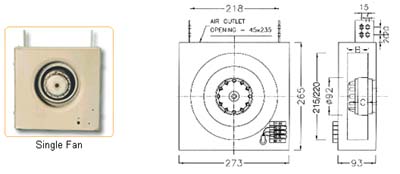

Housing details for Backward Cured Fans (215 & 220 mm Dia. Impellers)

Housing details for Backward Cured Fans (215 & 220 mm Dia. Impellers)
Housing details for Backward Cured Fans (215 & 220 mm Dia. Impellers)

Technical Specifications :

Centrifugal Fans

MODEL
Voltage
V
Amps
A
Watts
W
Speed
RPM
Air
Flow m3/hr
BC 23/19028
230
0.30
65
2600
500
BC 23/22028
230
0.30
110
2800
800
BC 44/19028
415
0.20
80
2600
500
BC 44/22028
415
0.35
135
2800
800

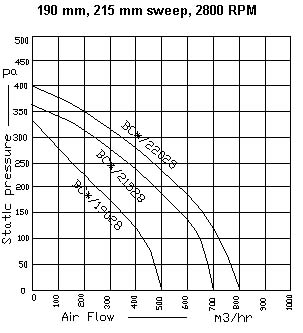

Air Flow Curves for Backward Curved Centrifugal fan
Air Flow Curves

Conversion 100pa = 0.4 H2O 100m3/Hr = 60cfm


Typical Applications :

Thyristor and Electronic Panel Cooling
Roof Extractors and Kitchen Hoods
Room Air Filters/Cleaners
Applications with relatively high static pressure at the Inlet of the Fan

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
